Fork Mounted Vacuum Lifting Attachment Manufacturers and Suppliers in UAE

We at Shree Krishna Industries are one of the leading manufacturers and suppliers of Fork Mounted Vacuum Lifting Attachment in UAE. Our fork mounted vacuum lifting attachment manufacturer company provides the completely 100% tested equipment having certification of CE.

We fork mounted vacuum lifting attachments suppliers in UAE offer a wide range of these products like fork lift trucks, pedestrian and reach fork loaders for a variety of purposes such as for carrying concrete slabs, sheet and plates, drums and other kinds of loads, etc.

Info, Uses And Benefits With Us!

Fork Mounted Vacuum Lifting Attachment Manufacturers in UAE consist of a hook or jib for which allows the lifting of load from the top rather than from down or underneath the load. This is very useful in the case when the forks did not fit with the load.

These Fork Mounted Vacuum Lifting Attachment manufacturers in UAE are involved in a variety of applications in agricultural as well as construction industries, factories, warehouses or on any site.

Key Features Of Fork Mounted Vacuum Lifting Attachment

  • Suction Pads Available For Any Dimension
  • Radio Control Operation For 90’ Tilt
  • Easily Adjustable Vacuum Pads
  • Low Maintenance
  • Ideal For Plates, Pipes, Slabs

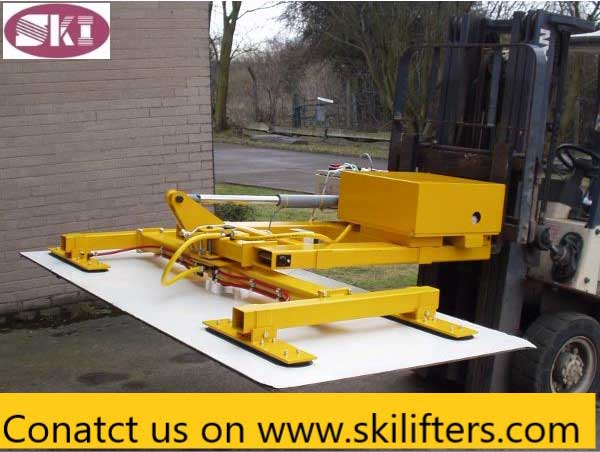

Designed to mount on the front fork of forklifts or other lifting equipment, adopt vacuum to hold the slabs and tiles, moved and transported by mobile forklifts, with tilt and/or rotation movements for manipulation.

If there is no overhead crane or gantry in the plant or warehouse, it is a good choice to use this lifter mounted on forklifts or telescopic handler for transporting and handling stone slabs and ceramic tiles. Also it can load and unload slabs onto/from the trucks.

In the construction site, it can be designed to mount on the truck cranes or spider cranes for handling and installing decorative stone walls.

Features of Fork Mounted Vacuum Lifting Attachment:

  • Use mechanical attachment for mounting on forklift and other mobile lifting equipment.
  • Adopt chargeable batteries as power, no cable connection required.
  • Design and produce as per customers’ usage and application.
  • Energy saving system increases the working hours.
  • Powered tilt and/or rotation movements lead to easy handling.
  • Remote control keeps the operator in safe working position

Technical Data

Load Capacity Up to 1500 kg
Vacuum Pad Round, 250mm/300mm diameter, with mounted spring base; EPDM material Number as per slabs/tiles dimension and weight
Mechanism Structural attachment assembled and mounted on forklift or other handling equipment
Working Power DC power, 12 volts / 24 volts
Vacuum Single vacuum circuit or dual vacuum circuits as required
Max. Glass Size Depending on the dimension of the suction frame and glass thickness, suggested up to 4800 x 1600 mm
Hoist Device Forklifts, telescopic handler, any other lifting equipment
Vacuum Holding Time > 05 minutes after power loss
Tilt Capability 90°, manual/motorized
Rotation Capability Not required, or 180°, manual/motorized
Optional 3 / 4 / 6 or 8 m traverse for wide elements
Safety Protection Closed non-return circuits
Vacuum compensation system
Acoustic and optical alarm (option)
Control Wired remote
Extension Arm With / without, as required
